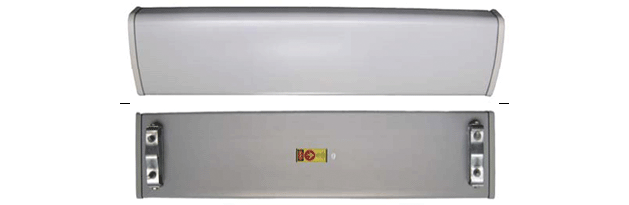

OTA-16V 16dBi UHF Vertical Polarized Antenna
| Operating Frequency | 870MHz to 960MHz |
| IP Rating | 54 |
| Gain | 16dBi |
| Horizontal 3dB Beamwidth | 60° |
| Vertical 3dB Beamwidth | 14° |
| Front-Back Ratio |
> 25dB |
| Polarization | Vertical |
| Impedance | 50ohm |
| VSWR | < 1.5 |
| Maximum Input Power | 100W |
| Connector | N |
| Dimension | Antenna: 1220 x 280 x 130mm Packaging: 1350 x 370 x 235mm |
| Antenna Weight |
12kg |
| Radome Material |
PVC |
| Internal PCB Material | Duralumin |
*Subject To Change Without Prior Notice
