Maxim DS1973 iButton

Maxim DS1973 iButton

4Kb EEPROM iButton®
Datasheet :
DS1973.pdf

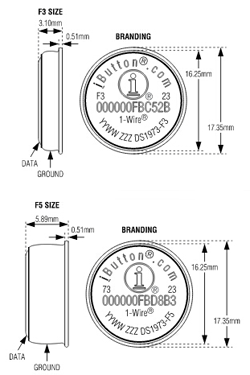

iButton DESCRIPTION
The Maxim DS1973 4Kb EEPROM iButton is a rugged read/write data carrier that identifies and stores relevant information about the product or person to which it is attached. This information can be accessed with minimal hardware, for example a single port pin of a micro-controller. The DS1973 consists of a factorylasered registration number that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit Family Code (23H) plus 4096 bits of EEPROM. The power to program and read the DS1973 is derived entirely from the 1-Wire communication line. The memory is organized as sixteen pages of 256 bits each. The 64-bit registration number provides a guaranteed unique identity which allows for absolute traceability. Data is transferred serially via the 1-Wire protocol which requires only a single data lead and a ground return. The durable MicroCan package is highly resistant to harsh environments such as dirt, moisture, and shock. Its compact button-shaped profile is self-aligning with cup-shaped receptacles, allowing the DS1973 to be used easily by human operators or automatic equipment. Accessories permit the Maxim DS1973 iButton to be mounted on printed circuit boards, plastic key fobs, photo-ID badges, ID bracelets, and many other objects. Applications include work-in-progress tracking, electronic travelers, access control and storage of calibration constants.

SPECIAL FEATURES

  • 4096 bits Electrically Erasable Programmable Read Only Memory (EEPROM)
  • Overdrive mode boosts communication speed to 142kbps
  • 256-bit scratchpad ensures integrity of data transfer
  • Memory partitioned into 256-bit pages for packetizing data
  • Reduces control, address, data and power to a single data pin
  • 8-bit family code specifies Maxim DS1973 iButton communication requirements to reader
  • Reads and writes over a wide voltage range of 2.8V to 6.0V from -40°C to +85°C
