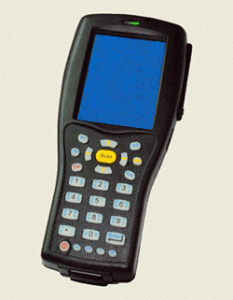

H200 - UHF Handheld RFID Reader - 195x91x46mm

H200 – UHF Handheld RFID Reader

H200 UHF Handheld RFID Reader reads both ISO Standards ISO/IEC 18000-6B andISO/IEC 18000-6C (or EPC Class 1 Gen 2). Operates on both 902-928MHz and 860-870MHz band, H200 has a GPRS data connection to the GSM network and a WiFi connection to your wireless network.

Programmed on Windows CE Operating System platform over 128Mb of ROM / RAM, H200 comes with a 3.5″ LCD with 25 key keypad and handwriting support.

Operating Frequency 860MHz to 960MHz
RF protocol ISO18000-6B
EPC Class 1
EPC Class 1 GEN 2
Transmission Method
FHSS or Fixed Frequency
(Software Configured)
Antenna Built-in Antenna
RF Power Range 20 to 30 dBm
(Software Configured)
Tag Identification Time <8ms Per Tag
Tag Read/Write Latency
Read: 5ms every 8 bytes
Write: 25ms every 4 bytes
902-928MHz: 50-100cm
860-870MHz: 30-60cm
Communication Interface WiFi : IEEEE802.11b/g, 11Mb/s~54Mb/s
GPRS: 900/1800/1900MHz
Barcode Scanner Optional
Dimensions Reader: 195 x 91 x 46mm
Packaging: 260 x 150 x 107mm
980g (Gross)
450g (Net)
IP Rating IP54
Drop Resistance 1.2m
Reader Indicators Buzzer
Battery Standard Battery: 3.7V 2800mAh/3200mAh
Li-ion Battery
Inside Backup Battery: 17mAh
PDA Specification Operating System: Windows CE5.0
Flash Memory: 128Mb ROM
Volatile Memory: 128Mb RAM
External Memory: Up to 1Gb SD RAM
LCD Display: 3.5″ QVGA (240x320pixel, Colorized Touch-screen)
Keypad: 25+1 Keys / Support Handwriting
Packing List Reader
USB Cable
Lithium Battery
Touch Pen

*Subject To Change Without Prior Notice
