Keyboard Wedge (USB-HID) 13dBm Reader

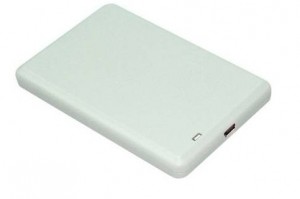

OTR1100b – UHF RFID Keyboard Wedge Reader provides users with a simple operation platform to perform simple basic RFID operations without getting into the complicated protocol details of UHF tags.
Operating with keyboard emulation output ( USB-HID or KBW interface), this plug-and-play reader outputs tag information on the computer as keyboard strokes. Application can be built on top of this output as if a human is typing on the keyboard.
Operating with keyboard emulation output ( USB-HID or KBW interface), this plug-and-play reader outputs tag information on the computer as keyboard strokes. Application can be built on top of this output as if a human is typing on the keyboard.
OTR1100a supports both EPC Class 1 Gen 2 and ISO 18000-6B standards and comes in a very compact form factor of 105 x 70 x 11mm.
| Operating Frequency | 868MHz to 963MHz |
| RF Protocol | ISO18000-6B EPC Class 1 EPC Class 1 GEN 2 |
| Transmission Method | FHSS or Fixed Frequency (Software Configured) |
| Antenna | Built-In |
| Maximum RF Power | 13 dBm (Adjustable) |
| Communication Interface | USB- HID |
| Dimension | 105 x 70 x 11mm |
| Weight | 80g |
*Subject To Change Without Prior Notice
