OTR30 NFC Forum Type-2 Tag Reader/Writer
OTR30 is our NFC Forum Type-2 Compliant Reader, complete with protocol SDK for encoding and reading. OTR30 is a full Mifare ISO14443A reader supporting the full range of ISO14443A tags from Mifare Ultralight, to NTAG 213 / NTAG 215 / NTAG 216 range of NFC Forum Type-2 Compliant tags.
With one of the most complete implementation of NFC Forum Type-2 Specification, our SDK allows flexibility in encoding NDEF Headers & Payload. This allows you to setup NTAG tags to trigger a URL, make a call, send an SMS, and even an email on a smart phone.

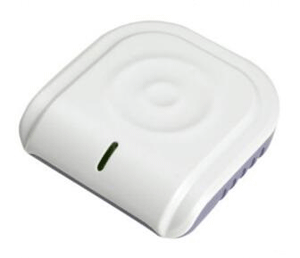

The compact & stylish design of OTR30 comes with a wide selection of computer interface. User can connect OTR30 from a distance with the network connectivity (TCP/IP), or at processing stations beside the computers via serial connection (RS232 / USB). This makes OTR30 the ideal RFID encoding deployment on various demanding applications.
| ISO Standard** | ISO 14443A & ISO 18092 / ISO15693 |
| Operating Frequency | 13.56MHz |
| Reading Distance | < 50mm |
| Contactless Cards | MIFARE / DESFire / NFC / ICODE / LRi / TI |
| Interface | USB / RS232 |
| Power Supply | 5VDC±5% < 200mA |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Dimensions | 100 x 100 x 27mm |
| Housing | ABS |
| Weight | 200g |
| Read Indication | LED / Beeper |
| Software Developer Kit | OTR30 SDK NFC.rar OTR30 SDK ISO15693.rar |
*Subject To Change Without Prior Notice
**Also avaliable in ISO15693
