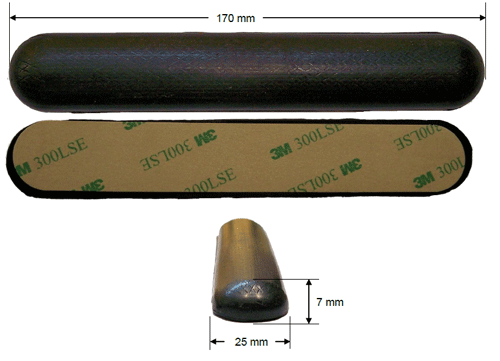

Pipe RFID Tags – HVP 170x25mm Metal Mount
Built specifically for tagging assets like pipes, risers and gas cylinders. This flexible UHF tag fits snugly on curved surfaces, both concave and convex. With a 170mm length, this tag bends the grips tightly onto curved surfaces. And with the right application technique, this IP69K tag is built to last.
Remains operational over a wide temperature range, tag can withstand extended exposure of up to 200°C. Operating on the 915 MHz frequency band, this tag boasts a 6.6m read range on metal surfaces.
With tag targeting assets that can be found in a wide range of environments, this tag provides good weather, pressure and chemical resistance.
| Dimensions | 170 x 25mm |
| Weight | 14g |
| Personalization | Encoding |
| Material | HVP Rubber |
| Temperature | -25°C to +85°C shock for 7 days – with no negative affect 85°C continuous for 30-days – with no negative affect 125°C continuous for 7 days – with no negative affect 160°C continuous for 7 days – tag becomes brittle, but functions 200°Cfor 24 hours – with no negative affect |
| Rating | IP69K |
| Chip | UHF |
*Subject To Change Without Prior Notice [WT]
